AI Research Topic/Dataset

[Dataset] COCO(Common Objects in Context) Dataset

꾸준희 2021. 3. 16. 01:39
728x90
반응형

COCO Dataset : cocodataset.org/#home



COCO - Common Objects in Context



cocodataset.org

COCO API : github.com/cocodataset/cocoapi



cocodataset/cocoapi

COCO API - Dataset @ http://cocodataset.org/ . Contribute to cocodataset/cocoapi development by creating an account on GitHub.

github.com

COCO API 사용 예제 : github.com/cocodataset/cocoapi/blob/master/PythonAPI/pycocoDemo.ipynb



cocodataset/cocoapi

COCO API - Dataset @ http://cocodataset.org/ . Contribute to cocodataset/cocoapi development by creating an account on GitHub.

github.com







COCO API 를 이용하면 COCO Dataset 을 수월하게 다룰 수 있다.

실제로 많은 프로젝트에서 COCO API를 이용하거나 약간 수정하여 데이터 세트를 다룬다.



COCO 데이터는 아래와 같이 다운 받을 수 있다.



(2021.07.23) 다운로드 경로가 변경되어 경로를 수정하였음

mkdir coco
cd coco
mkdir images
cd images

wget http://images.cocodataset.org/zips/train2017.zip
wget http://images.cocodataset.org/zips/val2017.zip
wget http://images.cocodataset.org/zips/test2017.zip
wget http://images.cocodataset.org/zips/unlabeled2017.zip

unzip train2017.zip
unzip val2017.zip
unzip test2017.zip
unzip unlabeled2017.zip

rm train2017.zip
rm val2017.zip
rm test2017.zip
rm unlabeled2017.zip

cd ../
wget http://images.cocodataset.org/annotations/annotations_trainval2017.zip
wget http://images.cocodataset.org/annotations/stuff_annotations_trainval2017.zip
wget http://images.cocodataset.org/annotations/image_info_test2017.zip
wget http://images.cocodataset.org/annotations/image_info_unlabeled2017.zip

unzip annotations_trainval2017.zip
unzip stuff_annotations_trainval2017.zip
unzip image_info_test2017.zip
unzip image_info_unlabeled2017.zip

rm annotations_trainval2017.zip
rm stuff_annotations_trainval2017.zip
rm image_info_test2017.zip
rm image_info_unlabeled2017.zip











데이터 세트를 받으면 아래와 같이 구성되어있다.



$ ls
000000000139.jpg  000000098018.jpg  000000190307.jpg  000000289702.jpg
000000384666.jpg  000000481413.jpg  000000000285.jpg  000000098261.jpg
000000190637.jpg  000000289741.jpg  000000384670.jpg  000000481480.jpg
...
$ ls annotations
captions_train2017.json  instances_train2017.json  person_keypoints_train2017.json
captions_val2017.json    instances_val2017.json    person_keypoints_val2017.json

















사용법은 아래와 같다. (Jupyter notebook)





1. COCO Dataset 사용 준비하기



필요한 패키지 import 및 .json 파일 불러오기

%matplotlib inline
from pycocotools.coco import COCO
import numpy as np
import skimage.io as io
import matplotlib.pyplot as plt
import pylab
pylab.rcParams['figure.figsize'] = (8.0, 10.0

dataDir='..'
dataType='val2017'
annFile='{}/annotations/instances_{}.json'.format(dataDir,dataType)

# initialize COCO api for instance annotations
coco=COCO(annFile)



위와 같이 설정해주면 아래와 같이 COCO API가 초기화된다.



loading annotations into memory...
Done (t=0.81s)
creating index...
index created!















2. COCO 카테고리 불러오기



# display COCO categories and supercategories
cats = coco.loadCats(coco.getCatIds())
nms=[cat['name'] for cat in cats]
print('COCO categories: \n{}\n'.format(' '.join(nms)))

nms = set([cat['supercategory'] for cat in cats])
print('COCO supercategories: \n{}'.format(' '.join(nms)))



아래와 같이 카테고리들이 모두 출력된다.



COCO categories:
person bicycle car motorcycle airplane bus train truck boat traffic light
fire hydrant stop sign parking meter bench bird cat dog horse sheep cow
elephant bear zebra giraffe backpack umbrella handbag tie suitcase frisbee
skis snowboard sports ball kite baseball bat baseball glove skateboard
surfboard tennis racket bottle wine glass cup fork knife spoon bowl banana
apple sandwich orange broccoli carrot hot dog pizza donut cake chair couch
potted plant bed dining table toilet tv laptop mouse remote keyboard cell phone
microwave oven toaster sink refrigerator book clock vase scissors teddy bear
hair drier toothbrush

COCO supercategories:
outdoor food indoor appliance sports person animal vehicle furniture accessory electronic kitchen



supercategories 가 있는줄은 지금 알았다 ^^;;

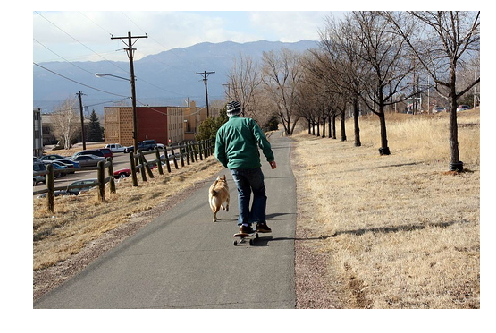

3. 랜덤으로 이미지 출력해보기

# get all images containing given categories, select one at random
catIds = coco.getCatIds(catNms=['person','dog','skateboard']);
imgIds = coco.getImgIds(catIds=catIds );
imgIds = coco.getImgIds(imgIds = [324158])
img = coco.loadImgs(imgIds[np.random.randint(0,len(imgIds))])[0]

# load and display image
# I = io.imread('%s/images/%s/%s'%(dataDir,dataType,img['file_name']))
# use url to load image
I = io.imread(img['coco_url'])
plt.axis('off')
plt.imshow(I)
plt.show()

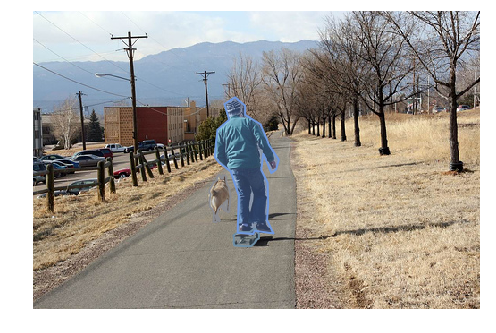

4. showAnns 을 이용하여 annotations 정보 불러와서 결과 확인하기



# load and display instance annotations
plt.imshow(I); plt.axis('off')
annIds = coco.getAnnIds(imgIds=img['id'], catIds=catIds, iscrowd=None)
anns = coco.loadAnns(annIds)
coco.showAnns(anns)













5. 키포인트 정보 불러오기 (person_keypoints_~~~.json)



# initialize COCO api for person keypoints annotations
annFile = '{}/annotations/person_keypoints_{}.json'.format(dataDir,dataType)
coco_kps=COCO(annFile)



위와 같이 설정해주면, 아래와 같이 초기화가 된다.



loading annotations into memory...
Done (t=0.58s)
creating index...
index created!

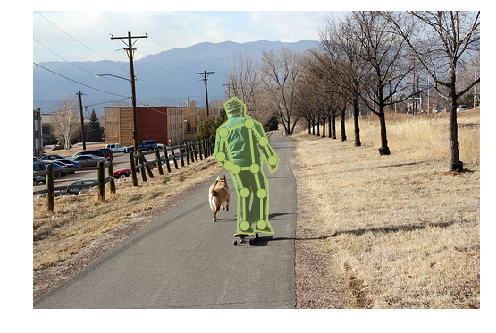

아래와 같이 결과 확인해보기



# load and display keypoints annotations
plt.imshow(I); plt.axis('off')
ax = plt.gca()
annIds = coco_kps.getAnnIds(imgIds=img['id'], catIds=catIds, iscrowd=None)
anns = coco_kps.loadAnns(annIds)
coco_kps.showAnns(anns)



참고로 키포인트 데이터에서 COCO 2017 train 데이터는 COCO 2014 trainval 데이터와 같고

COCO 2017 val 데이터는 COCO 2014 minival 데이터와 같다고 한다.















6. 캡션 정보 불러오기



# initialize COCO api for caption annotations
annFile = '{}/annotations/captions_{}.json'.format(dataDir,dataType)
coco_caps=COCO(annFile)

# load and display caption annotations
annIds = coco_caps.getAnnIds(imgIds=img['id']);
anns = coco_caps.loadAnns(annIds)
coco_caps.showAnns(anns)
plt.imshow(I); plt.axis('off'); plt.show()



위와 같이 설정해주면 아래와 같이 캡션 정보를 출력해볼 수 있다.



A man is skate boarding down a path and a dog is running by his side.
A man on a skateboard with a dog outside.
A person riding a skate board with a dog following beside.
This man is riding a skateboard behind a dog.
A man walking his dog on a quiet country road.

























참고자료 1 : ukayzm.github.io/cocodataset/



COCO Dataset - 코코 데이터셋

머신러닝을 위해 많은 데이터 셋이 만들어져 있는데, 그 중에 COCO dataset은 object detection, segmentation, keypoint detection 등을 위한 데이터셋으로, 매년 다른 데이터셋으로 전 세계의 여러 대학/기업이

ukayzm.github.io



참고자료 2 : github.com/mks0601/TF-SimpleHumanPose/issues/4



where can I get human_detection.json of MPII? · Issue #4 · mks0601/TF-SimpleHumanPose

I want to test model trained from MPII, where can I get human_detection.json of MPII

github.com



참고자료 3 : https://gist.github.com/mkocabas/a6177fc00315403d31572e17700d7fd9



Download COCO dataset. Run under 'datasets' directory.

Download COCO dataset. Run under 'datasets' directory. - coco.sh

gist.github.com
